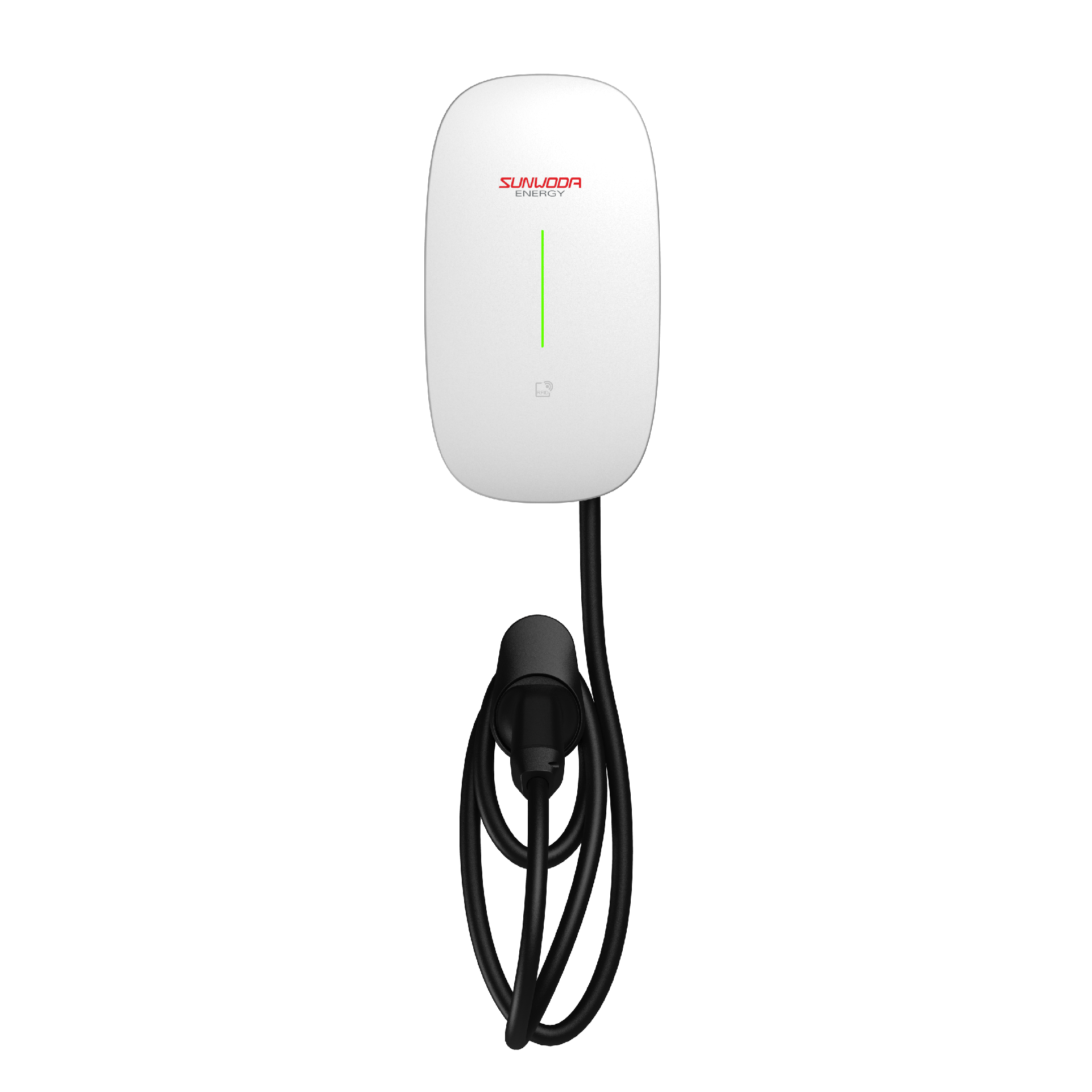

SunESS Power Wallbox Smart EV Charging Solution with PV and Energy Management

Features

Feature Description

An intelligent EV charging solution that seamlessly integrates PV, energy storage, and advanced energy management to deliver safe, efficient, and user-centric charging experiences.

Intelligent and Convenient

● Integrate PV, energy storage, and EV charging into a unified system to optimize energy utilization.

● Remote smart monitoring and control via the app or website, supporting scheduled charging for time-saving efficiency.

● Supports load and energy management, controlling charging power based on household consumption and utilizing surplus PV to charge vehicles.

● RFID card swipe activation mode enables flexible and user-friendly experience design.

Safe and Reliable

● Integrated 30mA Type A and 6mA DC fault current detection.

● IP65 protection rating, suitable for indoor and outdoor use.

● Multiple Electrical Function Protection.

Sunwoda Inside, Power Your Life

Charge Smarter with SunESS Power Wallbox

SunESS Power Wallbox smart energy integration

Smarter Energy Integration

Integrating PV, energy storage, and EV charging into a unified system, SunESS Power Wallbox helps optimize energy utilization and makes better use of clean energy at home.

SunESS Power Wallbox flexible EV charging

Charge Your Way

Multiple activation options, including plug-and-charge, RFID card, and app control, provide a flexible and user-friendly charging experience.

SunESS Power Wallbox remote monitoring and scheduled charging

Smart Control Anytime, Anywhere

Monitor and control charging remotely through the app or website, and schedule charging sessions according to your daily routine and energy needs.

SunESS Power Wallbox safe and reliable EV charging

Safety at Every Charge

Integrated 30mA Type A and 6mA DC fault current detection, together with multiple electrical protection functions, helps ensure safe and reliable charging.

SunESS Power Wallbox indoor and outdoor installation

Built for Diverse Environments

With an IP65 protection rating and a robust design, SunESS Power Wallbox is suitable for reliable operation in both indoor and outdoor installation environments.

parameter

Understand its internal structure in detail

Rated Power

11kW
Rated Voltage

400V AC
Rated Current

16A
Frequency

50/60 Hz
Power Supply

3P+N+PE
Charge Connector

Type 2 Cable
Cable Length

7m
Residual Current Device (RCD)

30mA Type A + 6mA DC
Over current protection

Supported
Residual current protection

Supported
Ground protection

Supported
Surge protection

Supported
Over / Under voltage protection

Supported
Over / Under frequency protection

Supported
Over temperature protection

Supported
Impact Protection

IK10
Ingress Protection

IP65
Certification

CE, RED, RoHS
Certification Standard

EN 18031-1; EN IEC 61851-1; EN IEC 61851-21-2; EN IEC 61000-6-1; EN IEC 61000-6-3; EN 62311; EN 300 328; EN 300 330; EN 301 489-1/3/17
Operation Temperature

-30℃~ + 50℃
Work Humidity

5%~95%
Work Altitude

≤2000m
Dimensions (H × W × D)

365 × 201 × 99.5mm
Net Weight

3.2kg
Enclosure

PC
Installation

Wall-mount / Pole-mount (Optional)
Warranty

3 years

Product Resources

Brochure - SunESS Power Wallbox

Quick guide_11kW_Cable_EU

Installation & Operation Guide_Caro Plus_Cable_11kW
