Residential Energy Storage System SunESS H Series

Delivering more power, reliability, and safety
SUNWODA INSIDE, POWER YOUR LIFE
Meet SunESS H, A Home ESS that Meets the Large Energy Demands of Homeowners
As homes or commercial properties are having greater energy demands, high-voltage batteries have become a new trend in the clean energy industry. They are highly efficient and offer a higher charge/discharge rate to easily operate heavy appliances, such as electric vehicles. Sunwoda SunESS H series is a stackable and scalable residential energy storage system featuring a high voltage of 400V. It is specially designed for households or commercial properties with larger energy demands.

Flexible Capacity

Easy to install

Excellent Performance at Low Temperature

Real-Time Monitoring
High Voltage
(~400V)
Sunwoda Inside, Power Your Life
Take One Step Closer to Energy Independence with the SunESS H Series

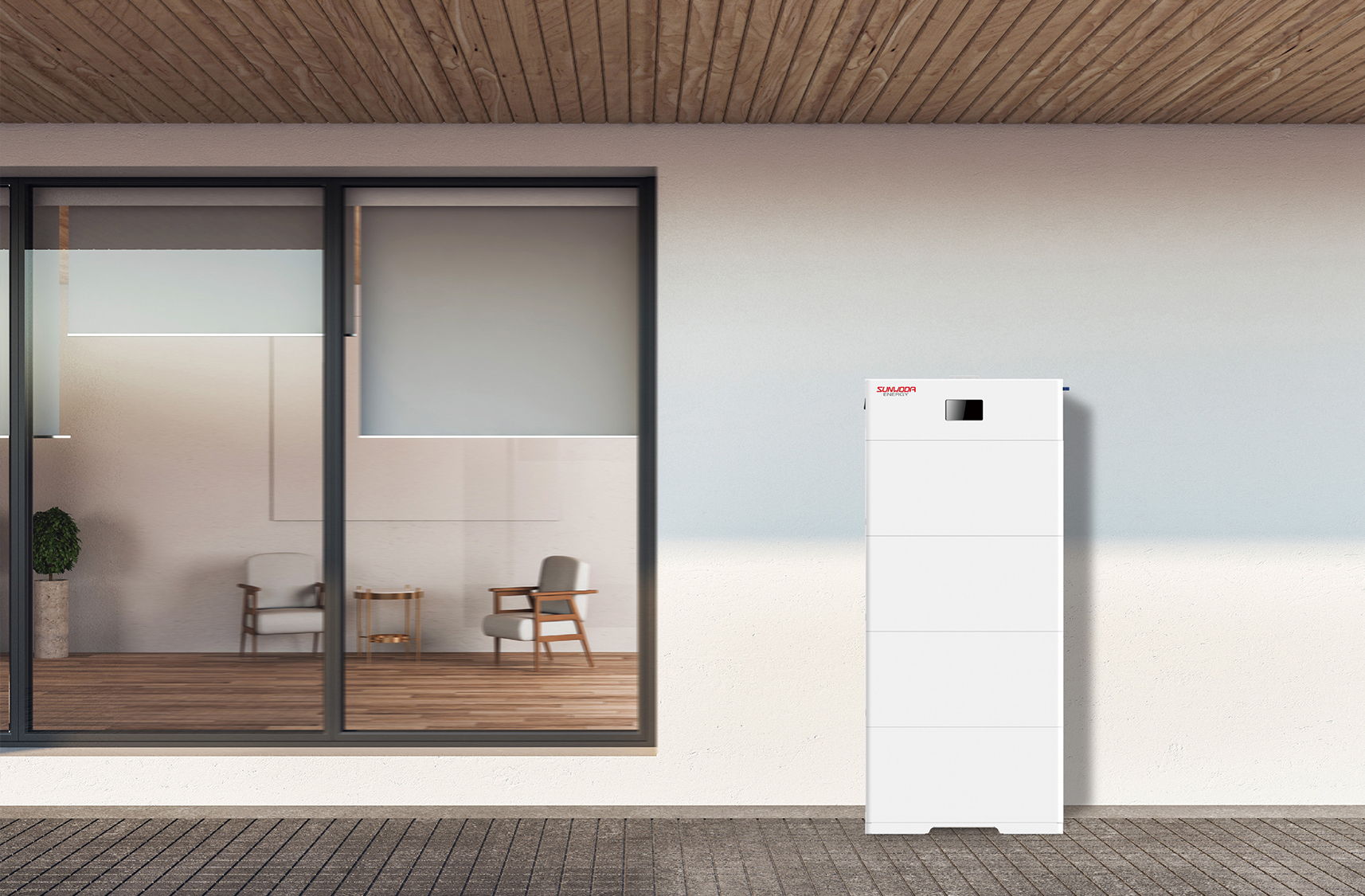

sunwoda residential ess SunESS H
Meet Large Residential Energy Demands
As a home energy storage system with a high voltage design, the SunESS H series can provide higher energy output to support heavier loads at your home
sunwoda residential ess SunESS H

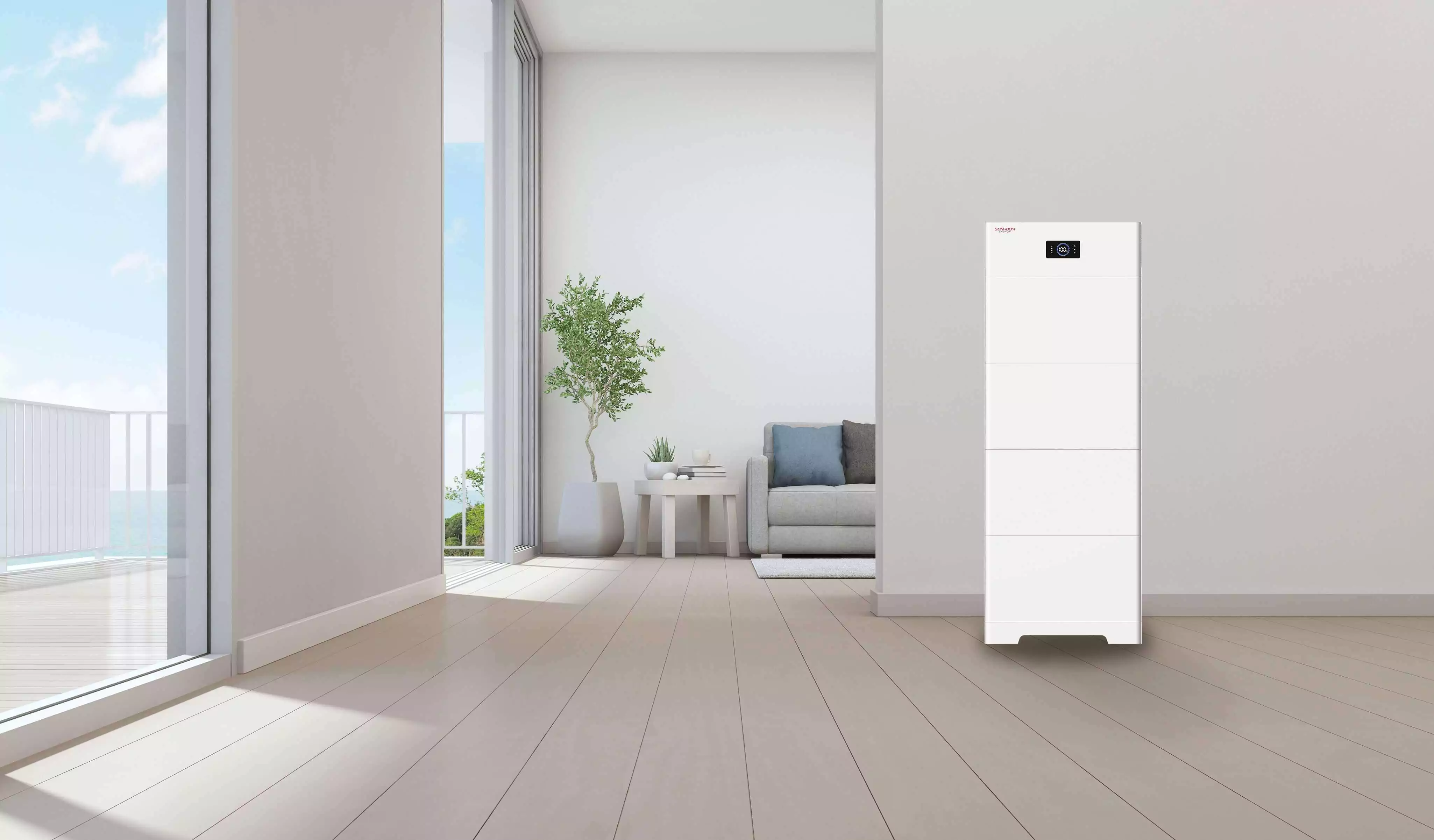

Scalable Design for Various Energy Storage Needs

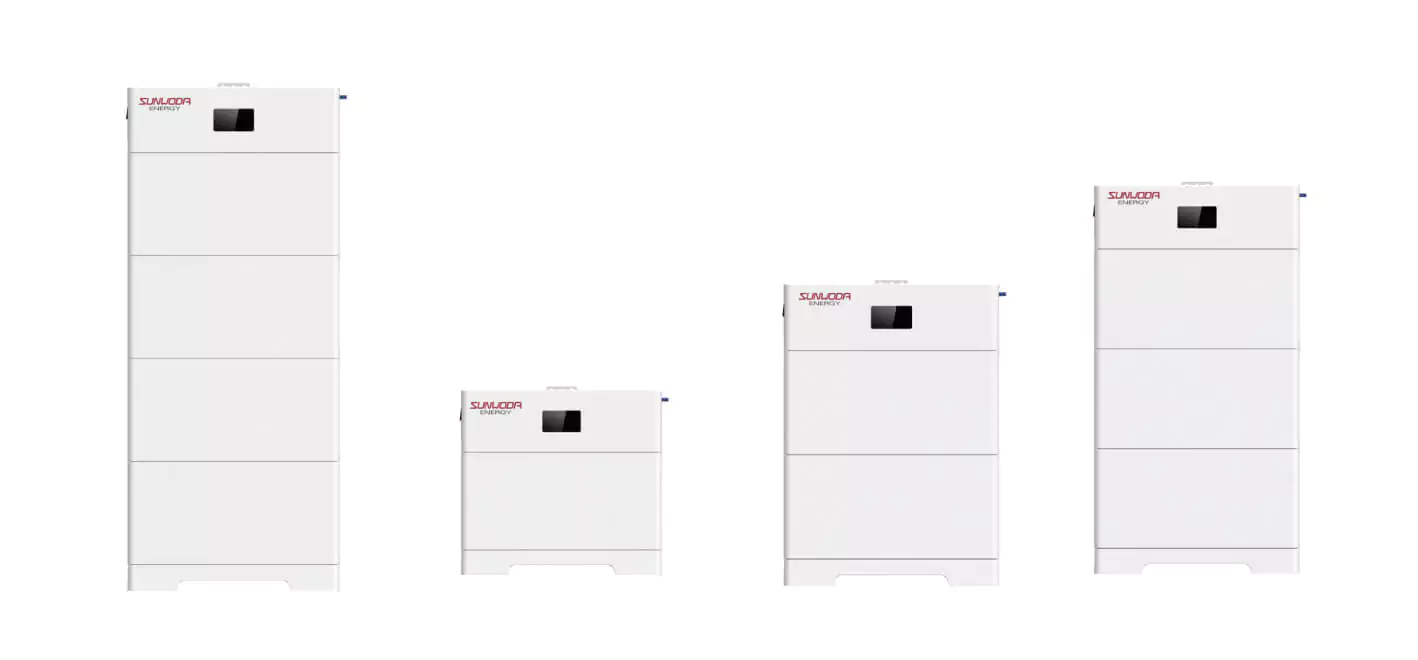

The SunESS H series has a capacity covering from 5kWh to 60 kWh, enabling you to power and protect more of your home appliances.
Reduce electricity bills
High Compatibility
Compatible with market-leading hybrid inverters from more than 10 brands, the SunESS H series can be flexible when it comes to integrating it into your solar system
home energy storage
Safe & Long Battery Life
With LiFePO4 (LFP) technology, the safest type of lithium battery, this residential ESS has demonstrated safe and long-life energy storage performance in millions of families.
home energy storage
Automatic On-grid/Off-grid Switching
It allows you to use the SunESS H system for various on-grid/off-grid application scenarios. No matter whether you are at home or on an island
clean energy
Build a Low-Carbon Home
Home battery energy storage plays a pivotal role in a low-carbon home. Now, we have residential ESS solutions available to help you contribute to energy savings and create a more sustainable and prosperous future for ourselves and the generations to come.
parameter
Understand its internal structure in detail

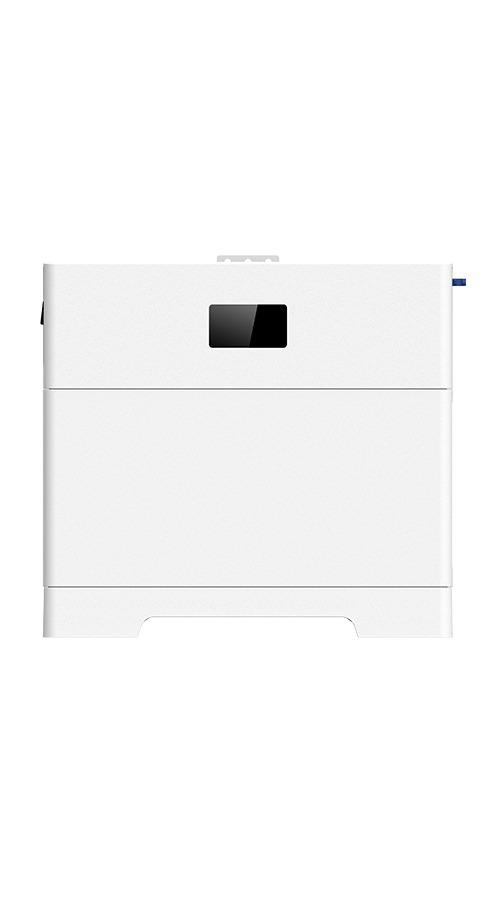

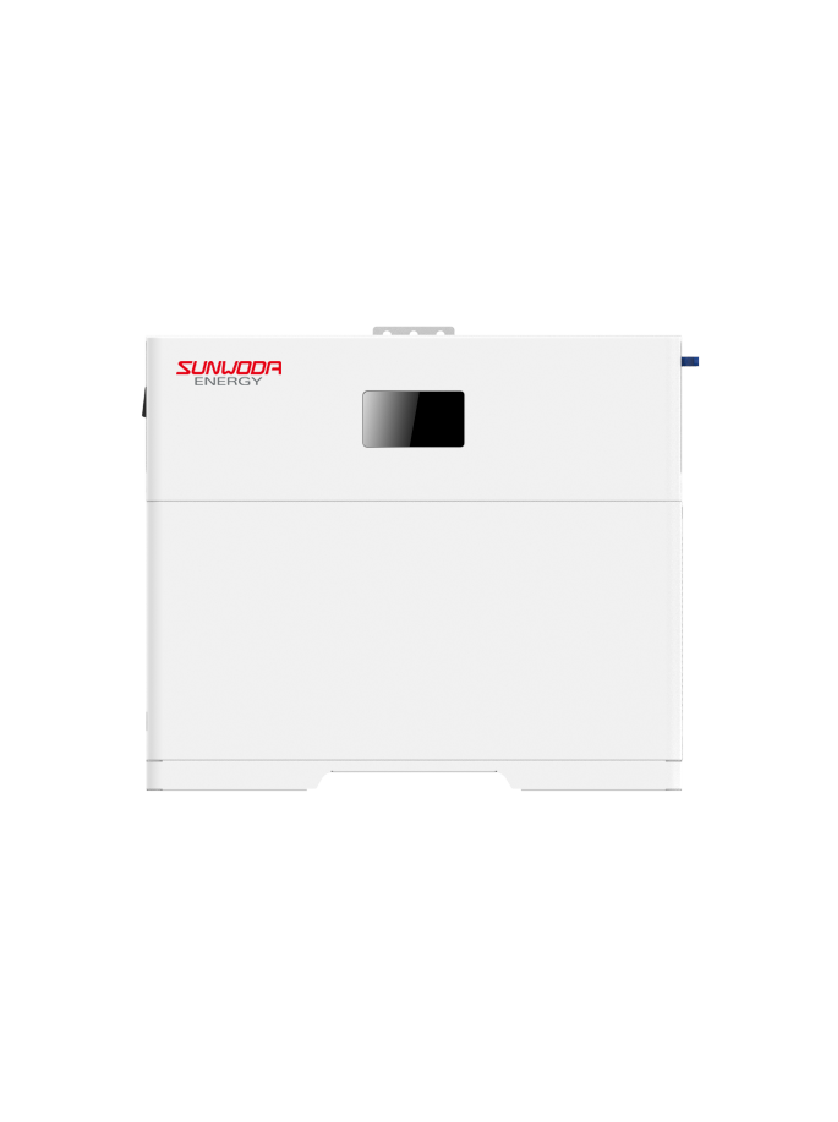

  • Nominal Energy
    5kWh
  • Usable Energy (90% DOD)1
    4.5kWh
  • Rated Voltage
    400V
  • Operated Voltage Range
    350V~450V
  • Rated Charge/Discharge Power2
    2.5kW
  • Rated Output Power
    4.2kW/20s
  • Communication Interface
    CAN 2.0 / RS485
  • DC Disconnect
    Circuit breaker, Peak, 1000V rating
  • Scalability3
    Max. 3 in parallel, Max. 60 kWh
  • Installation Location
    Outdoor or indoor
  • Ambient Temperature
    -4°F to 122°F (-20°C to 50°C)
  • Humidity
    5% to 95% (no condensation)
  • Dimensions (W × H × D, mm)
    653 × 553 × 189
  • Weight
    65kg
  • Enclosure Protection Rating
    IP65
  • Altitude
    <4000m
  • Cooling
    Natural convection
  • Noise Emission
    <29dB
  • Warranty4
    10 years
  • Certifications
    IEC62619 / CE / UN38.3 / VDE 2510-50 / CEI 0-21 / FCC / UL1973
  • 1. Test conditions: 90% DOD, 0.2C charge & discharge at 25℃.
  • 2. The power is affected by temperature and SOC.
  • 3. Optional data box supports three-cluster parallel operation, refer to the user manual for details.
  • 4. For warranty instructions, please refer to the warranty terms.

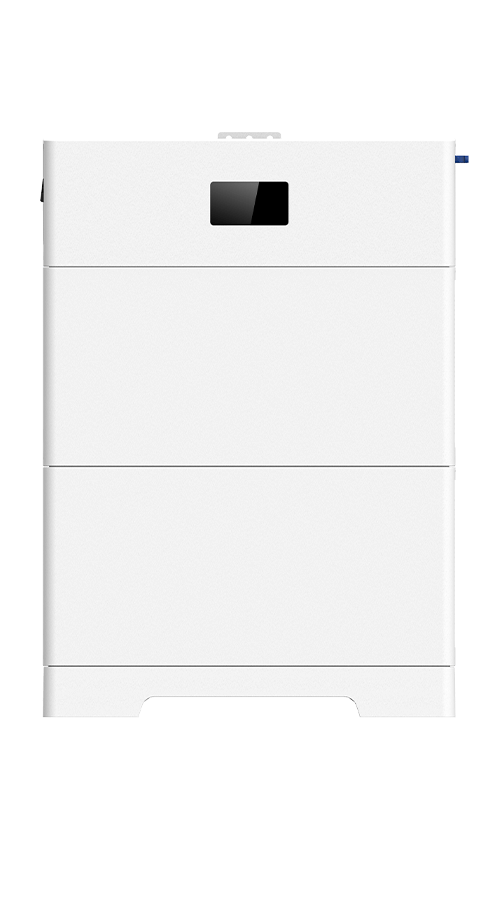

  • Nominal Energy
    10kWh
  • Usable Energy (90% DOD)1
    9kWh
  • Rated Voltage
    400V
  • Operated Voltage Range
    350V~450V
  • Rated Charge/Discharge Power2
    5kW
  • Rated Output Power
    8.4kW/20s
  • Communication Interface
    CAN 2.0 / RS485
  • DC Disconnect
    Circuit breaker, Peak, 1000V rating
  • Scalability3
    Max. 3 in parallel, Max. 60 kWh
  • Installation Location
    Outdoor or indoor
  • Ambient Temperature
    -4°F to 122°F (-20°C to 50°C)
  • Humidity
    5% to 95% (no condensation)
  • Dimensions (W × H × D, mm)
    653 × 868 × 189
  • Weight
    117kg
  • Enclosure Protection Rating
    IP65
  • Altitude
    <4000m
  • Cooling
    Natural convection
  • Noise Emission
    <29dB
  • Warranty4
    10 years
  • Certifications
    IEC62619 / CE / UN38.3 / VDE 2510-50 / CEI 0-21 / FCC / UL1973
  • 1. Test conditions: 90% DOD, 0.2C charge & discharge at 25℃.
  • 2. The power is affected by temperature and SOC.
  • 3. Optional data box supports three-cluster parallel operation, refer to the user manual for details.
  • 4. For warranty instructions, please refer to the warranty terms.

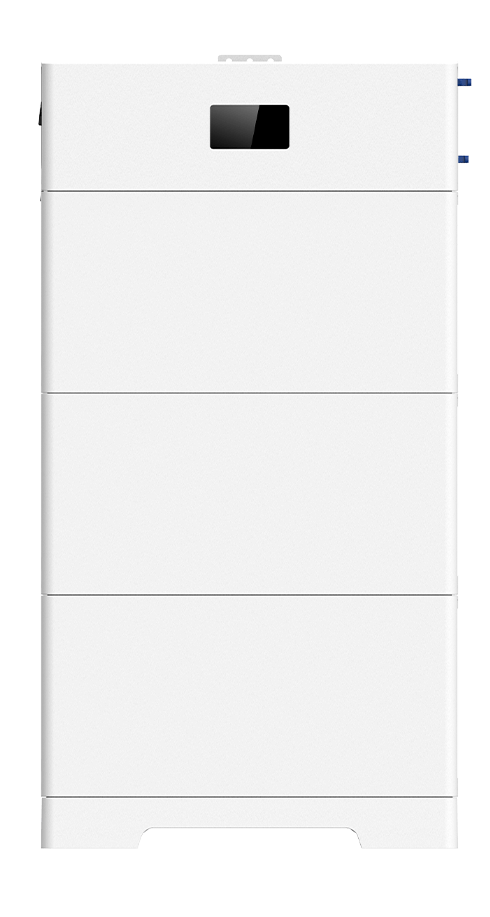

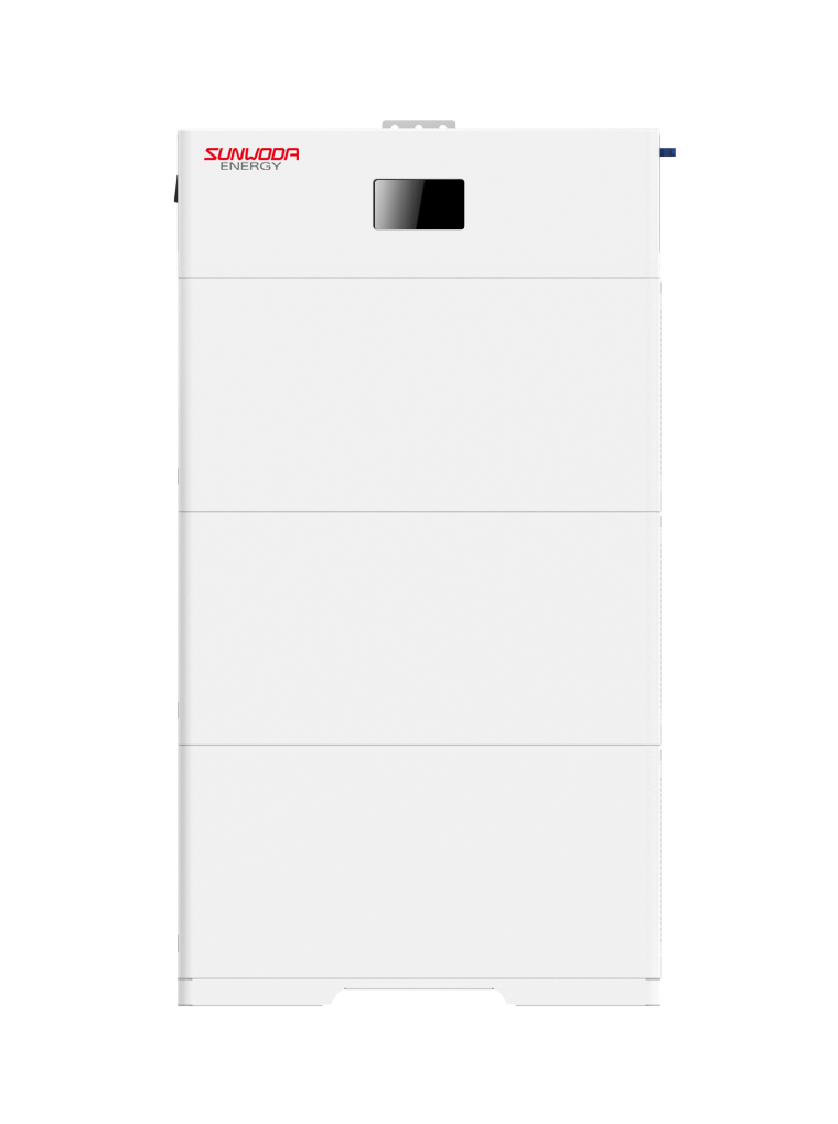

  • Nominal Energy
    15kWh
  • Usable Energy (90% DOD)1
    13.5kWh
  • Rated Voltage
    400V
  • Operated Voltage Range
    350V~450V
  • Rated Charge/Discharge Power2
    7.5kW
  • Rated Output Power
    12.6kW/20s
  • Communication Interface
    CAN 2.0 / RS485
  • DC Disconnect
    Circuit breaker, Peak, 1000V rating
  • Scalability3
    Max. 3 in parallel, Max. 60 kWh
  • Installation Location
    Outdoor or indoor
  • Ambient Temperature
    -4°F to 122°F (-20°C to 50°C)
  • Humidity
    5% to 95% (no condensation)
  • Dimensions (W × H × D, mm)
    653 × 1183 × 189
  • Weight
    169kg
  • Enclosure Protection Rating
    IP65
  • Altitude
    <4000m
  • Cooling
    Natural convection
  • Noise Emission
    <29dB
  • Warranty4
    10 years
  • Certifications
    IEC62619 / CE / UN38.3 / VDE 2510-50 / CEI 0-21 / FCC / UL1973
  • 1. Test conditions: 90% DOD, 0.2C charge & discharge at 25℃.
  • 2. The power is affected by temperature and SOC.
  • 3. Optional data box supports three-cluster parallel operation, refer to the user manual for details.
  • 4. For warranty instructions, please refer to the warranty terms.

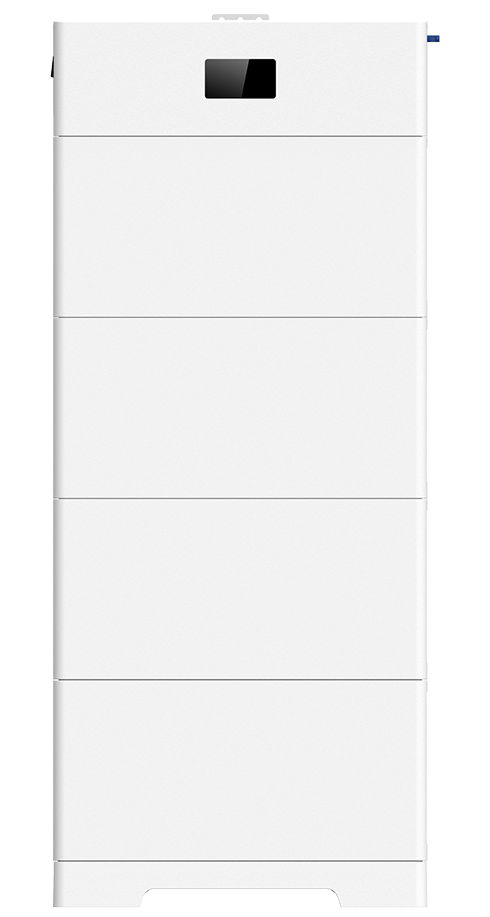

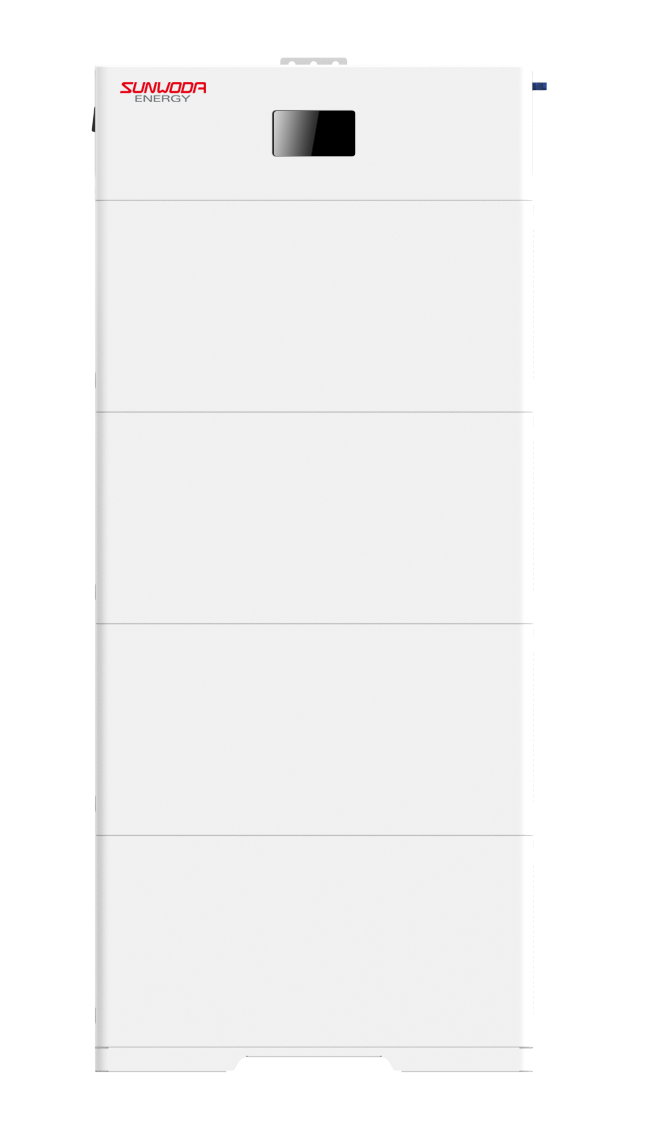

  • Nominal Energy
    20kWh
  • Usable Energy (90% DOD)1
    18kWh
  • Rated Voltage
    400V
  • Operated Voltage Range
    350V~450V
  • Rated Charge/Discharge Power2
    10kW
  • Rated Output Power
    16.8kW/20s
  • Communication Interface
    CAN 2.0 / RS485
  • DC Disconnect
    Circuit breaker, Peak, 1000V rating
  • Scalability3
    Max. 3 in parallel, Max. 60 kWh
  • Installation Location
    Outdoor or indoor
  • Ambient Temperature
    -4°F to 122°F (-20°C to 50°C)
  • Humidity
    5% to 95% (no condensation)
  • Dimensions (W × H × D, mm)
    653 × 1498 × 189
  • Weight
    221kg
  • Enclosure Protection Rating
    IP65
  • Altitude
    <4000m
  • Cooling
    Natural convection
  • Noise Emission
    <29dB
  • Warranty4
    10 years
  • Certifications
    IEC62619 / CE / UN38.3 / VDE 2510-50 / CEI 0-21 / FCC / UL1973
  • 1. Test conditions: 90% DOD, 0.2C charge & discharge at 25℃.
  • 2. The power is affected by temperature and SOC.
  • 3. Optional data box supports three-cluster parallel operation, refer to the user manual for details.
  • 4. For warranty instructions, please refer to the warranty terms.
