sunwoda residential energy storage system Atrix series

Modular Lithium-ion Battery Sunwoda Atrix Basic Series

Easy to install and plug-and-play
Home Products
MEET Scene Parameter Contact
SUNWODA INSIDE, POWER YOUR LIFE
Take Control of Your Power with the Atrix Series

Household energy storage system Atrix series is a green, efficient, advanced, and safe energy supply system that can reduce your electricity bill by storing excess clean energy generated by the solar panel, or energy from the grid during off-peak hours. It is mainly used for residential self-generation, peak shaving and valley filling, emergency power backup, and power optimization in residential and commercial buildings. The Atrix series can be expanded from 5kWh to 1.2MWh (Optional Data Box), allowing homeowners to build their own energy storage system flexibly.
Flexible application
Modular and cabinet installation
Easy to install
With a modular, lightweight, and plug-and-play design, the Atrix series only takes 1-2 people to install
Real-Time Monitoring
(Optional)
Homeowners can control and monitor their
Atrix series via APP anytime and anywhere
Sunwoda Inside, Power Your Life
Take One Step Closer to Energy Independence with the Atrix Basic
solar energy
Use Clean Energy 24/7 at Home
Coupled with renewable generators, such as solar panels, the Atrix Basic can provide energy during the night or when the grid fails, powering your appliances and devices and reducing the reliance on the grid.
home energy storage app
Home Energy Management at Your Fingertips
With a smart, intuitive, and user-friendly APP, homeowners can easily get a clear overview of energy production and consumption at home or on the go from any mobile device (Android, iOS, and Web).
Reduce electricity bills
Shrink Your Electricity Bill
You can charge your Atrix Basic by using solar panels during off-peak hours, and use the cheapest electricity source at night or during peak hours, avoiding paying peak-time prices.
a house with solar panels
Automatic switching between on/off grid
The Atrix Basic can be used for various application scenarios. No matter whether you are at home or on an island.

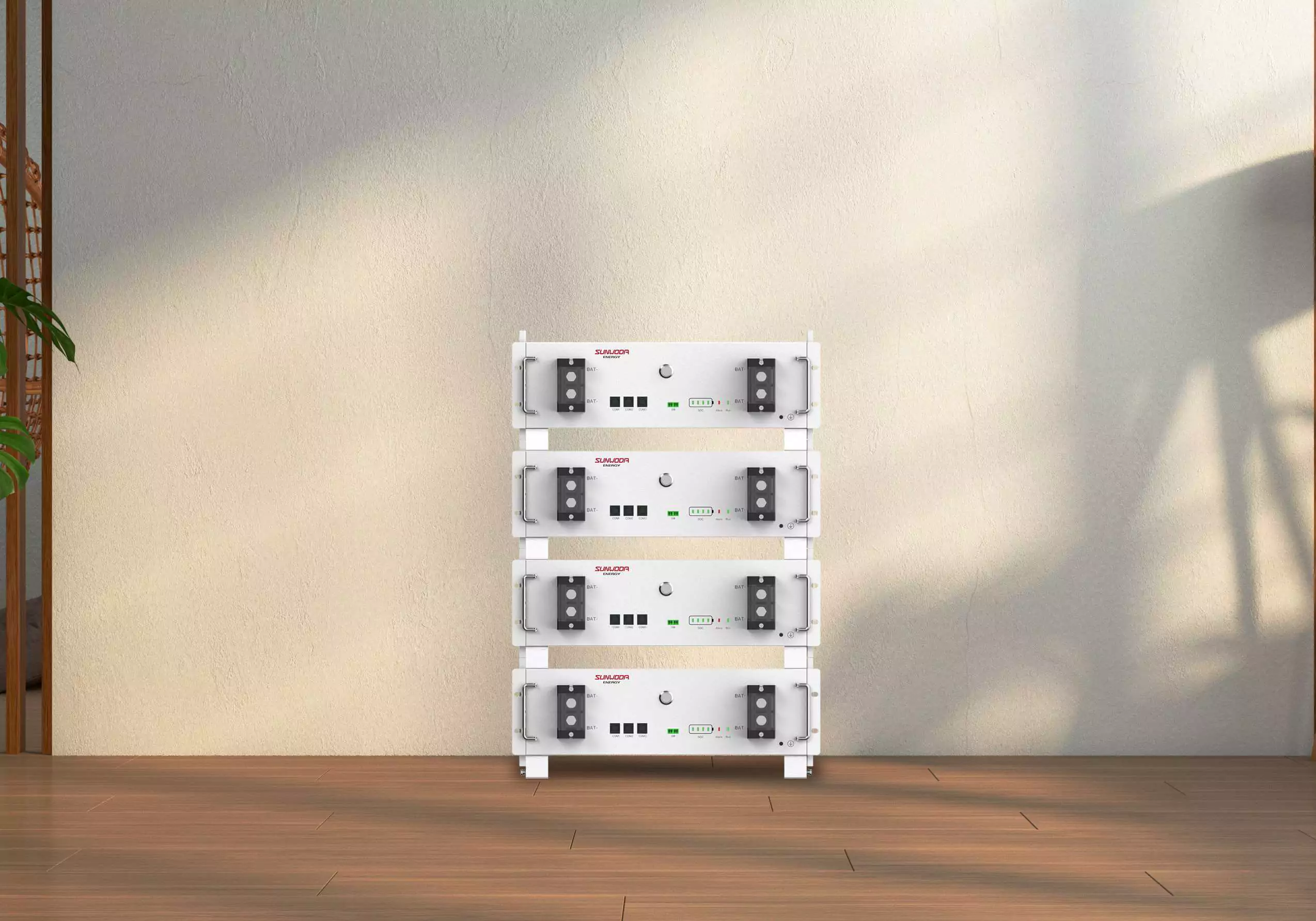

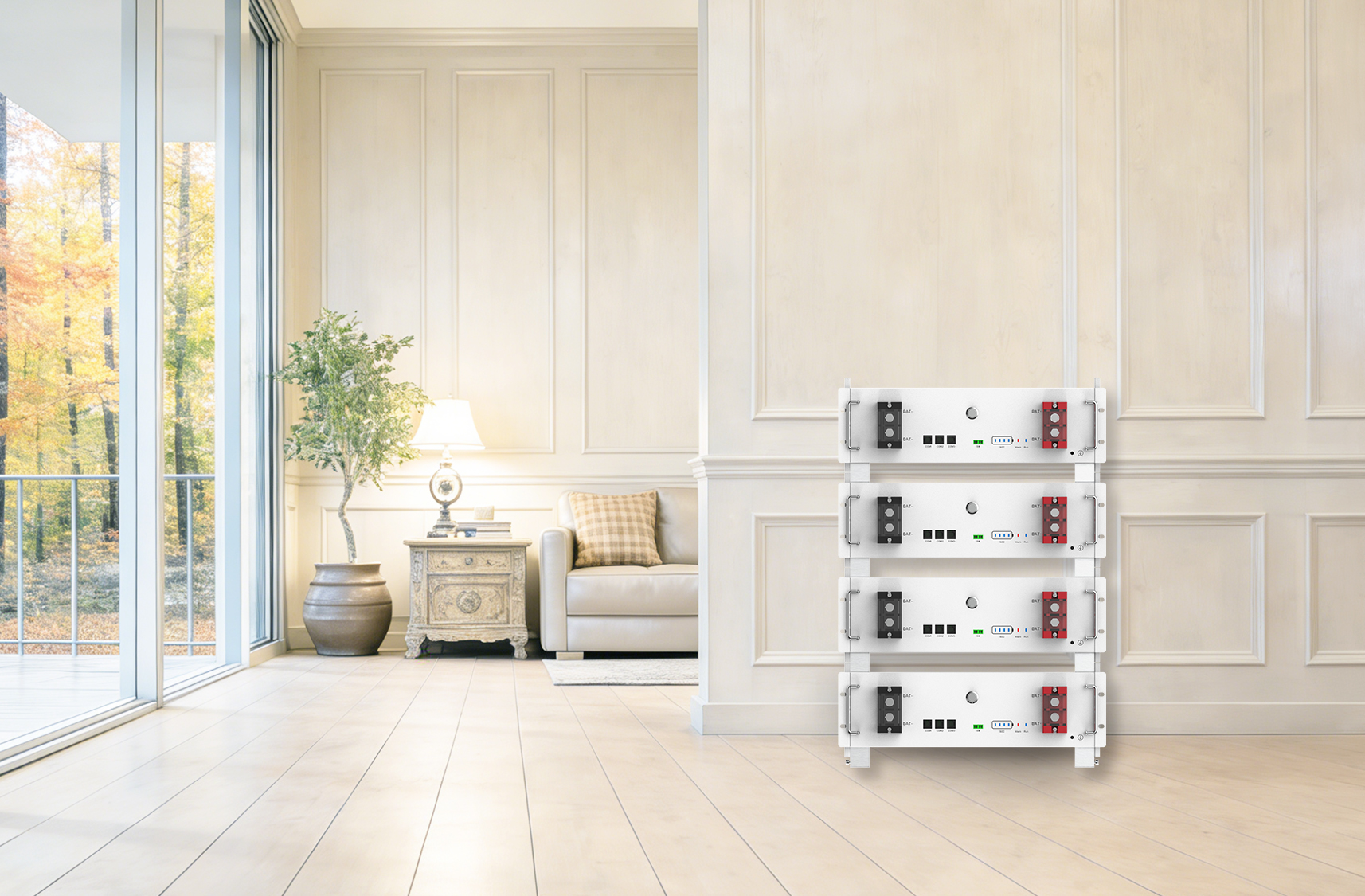

sunwoda residential energy storage system Atrix series

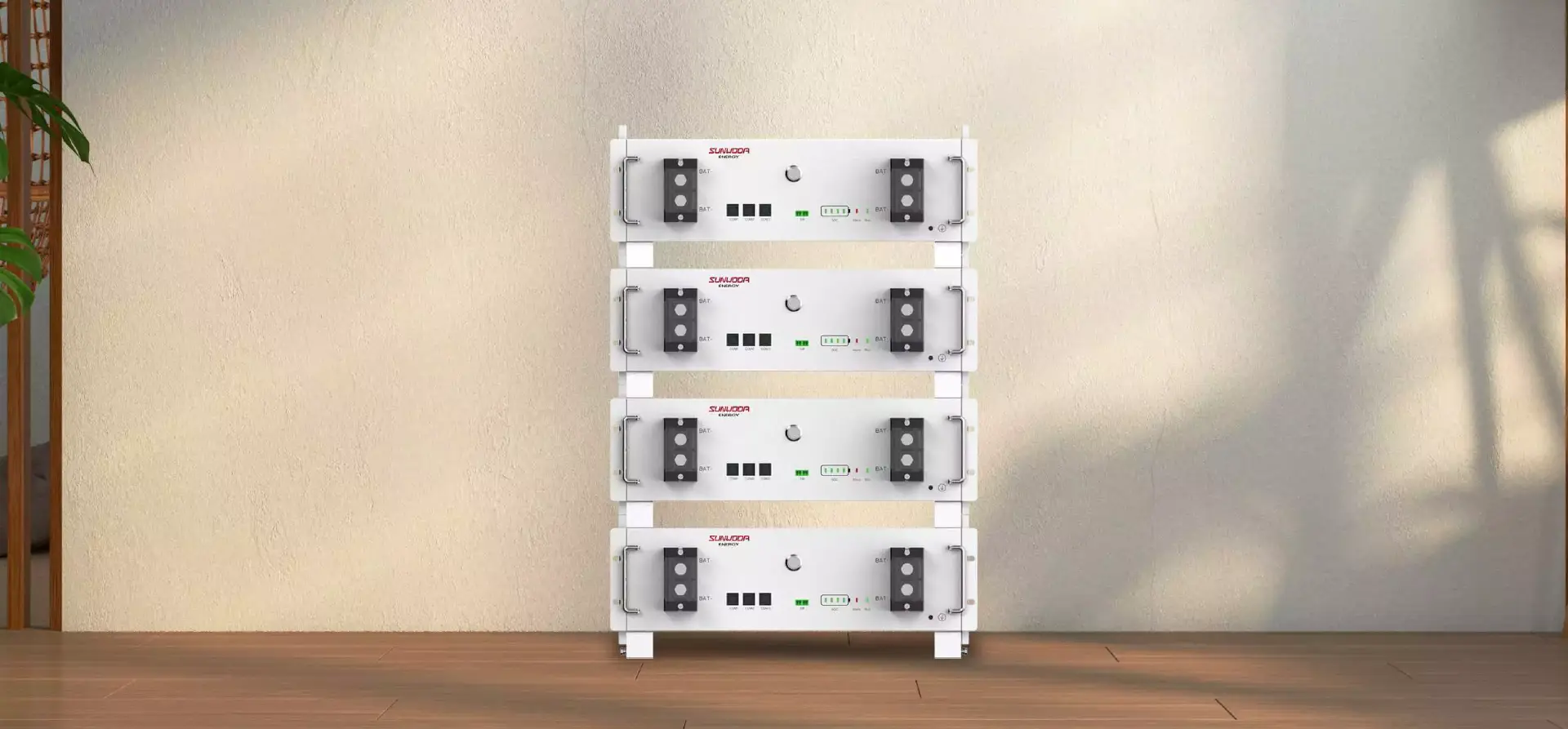

Modular and Cabinet Design for Flexible Installation
The Atrix Basic is a modular home energy storage system that can be expanded from 5kWh to 120kWh, allowing homeowners to build their own energy storage system flexibly.
clean energy
Build a Low-Carbon Home
Home battery energy storage plays a pivotal role in a low-carbon home. Now, we have residential ESS solutions available to help you contribute to energy savings and create a more sustainable and prosperous future for ourselves and the generations to come.
parameter
Understand its internal structure in detail

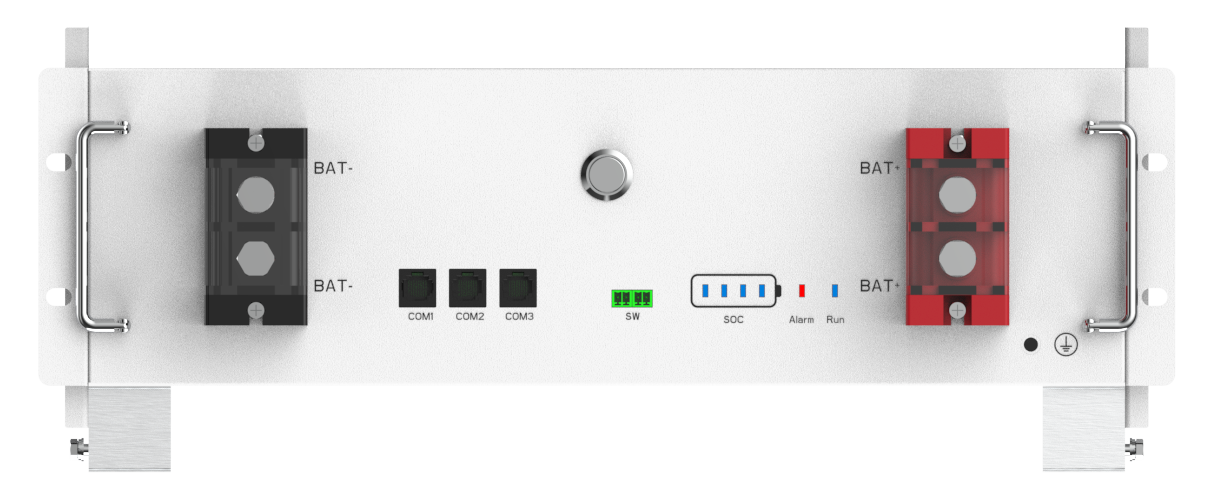

sunwoda modular battery Atrix basic series

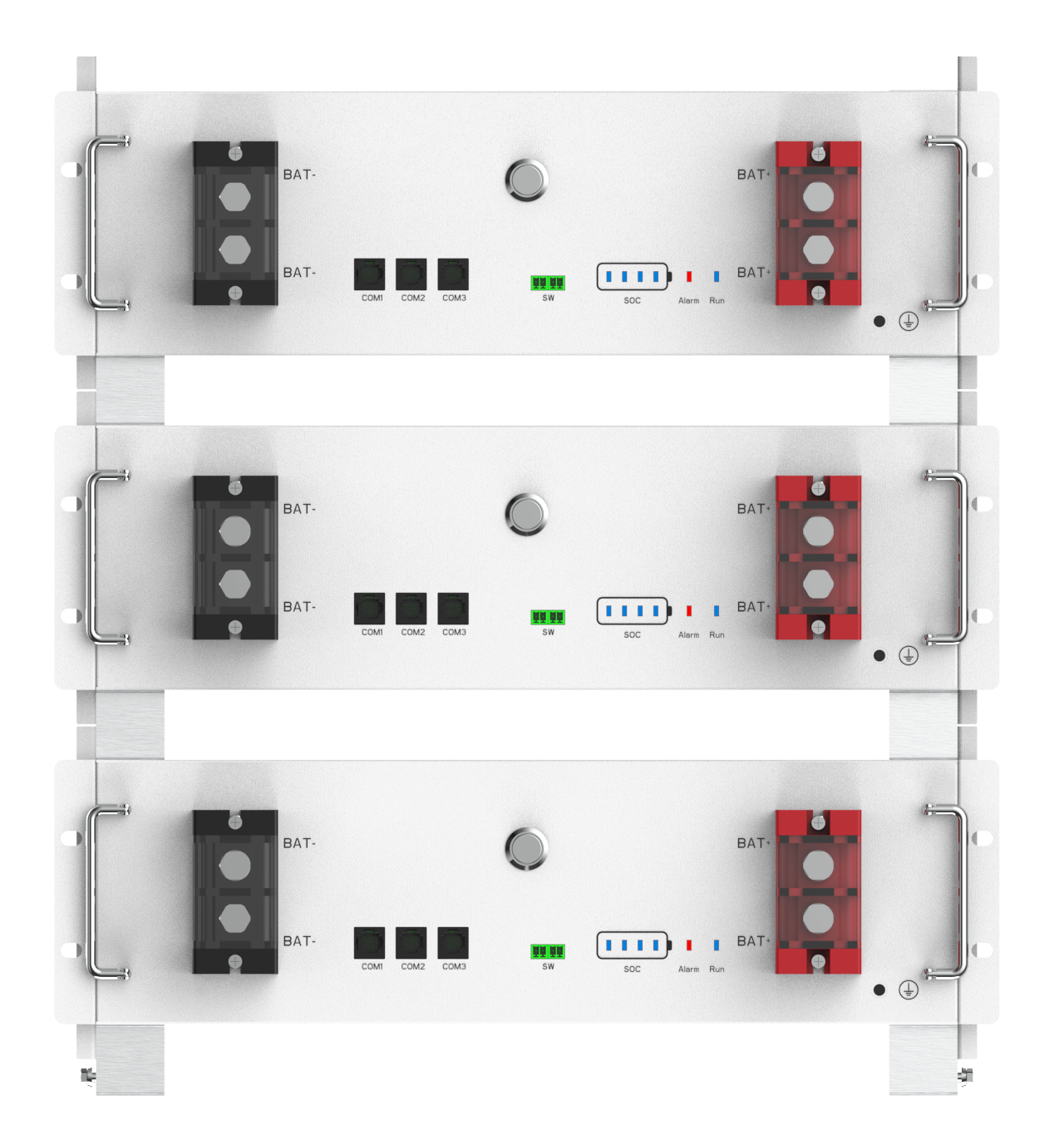

sunwoda modular battery Atrix basic series

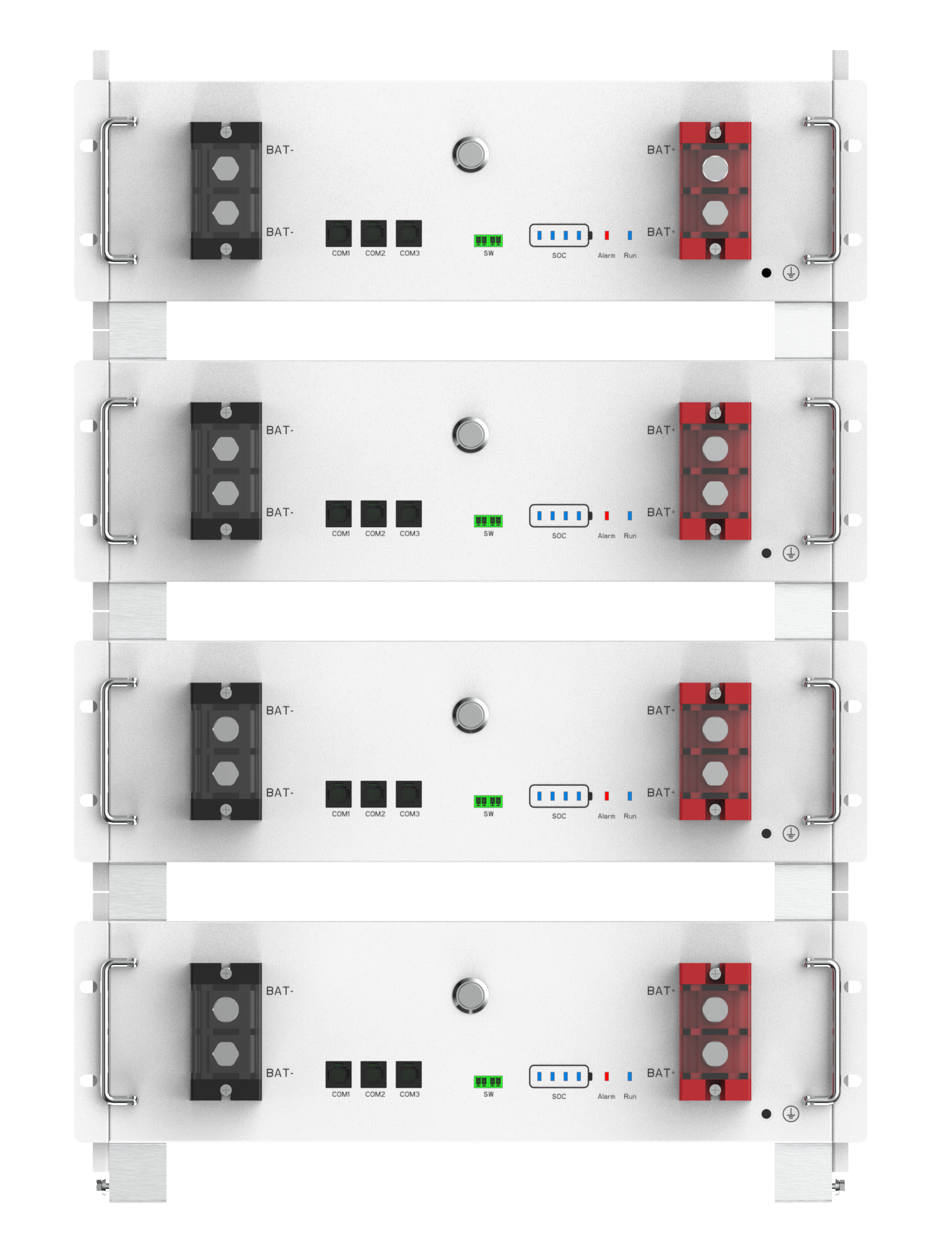

sunwoda modular battery Atrix basic series
sunwoda modular battery Atrix basic series
Atrix Basic-5 Atrix Basic-10 Atrix Basic-15 Atrix Basic-20
  • Nominal energy
    5kWh
  • Usable energy (100% DOD) 1
    5kWh
  • Rated voltage
    51.2V
  • Charge/discharge cut off voltage
    44.8V~55.2V
  • Rated charge/discharge current 2
    50A/80A
  • Max. charge/discharge current 2
    100A/100A
  • Communication interface
    CAN 2.0/RS485
  • Scalability
    Max. 240 in parallel, Max. 1.2 MWh
  • Operating temperature

    Discharging:-4℉ to 122℉ (-20℃ to 50℃), Charging:32℉ to 122℉ (0℃ to 50℃)

  • Dimensions (W*H*D, mm)

    440*135*410/PACK

  • Weight

    45kg

  • Enclosure protection rating

    IP20

  • Warranty 3

    10 years

  • Certifications

    IEC62619/CE/UN38.3

  • 1. Test conditions: 100% DOD, 0.2C charge & discharge at 25℃.
  • 2. The current is affected by temperature and SOC.
  • 3. For warranty instructions, please refer to the warranty terms.
Brochure/User Manual
Certification
  • Nominal energy
    10kWh
  • Usable energy (100% DOD) 1
    10kWh
  • Rated voltage
    51.2V
  • Charge/discharge cut off voltage
    44.8V~55.2V
  • Rated charge/discharge current 2
    100A/160A
  • Max. charge/discharge current 2
    180A/180A
  • Communication interface
    CAN 2.0/RS485
  • Scalability
    Max. 240 in parallel, Max. 1.2 MWh
  • Operating temperature

    Discharging:-4℉ to 122℉ (-20℃ to 50℃), Charging:32℉ to 122℉ (0℃ to 50℃)

  • Dimensions (W*H*D, mm)

    440*135*410/PACK

  • Weight

    90kg

  • Enclosure protection rating

    IP20

  • Warranty 3

    10 years

  • Certifications

    IEC62619/CE/UN38.3

  • 1. Test conditions: 100% DOD, 0.2C charge & discharge at 25℃.
  • 2. The current is affected by temperature and SOC.
  • 3. For warranty instructions, please refer to the warranty terms.
Brochure/User Manual
Certification
  • Nominal energy
    15kWh
  • Usable energy (100% DOD) 1
    15kWh
  • Rated voltage
    51.2V
  • Charge/discharge cut off voltage
    44.8V~55.2V
  • Rated charge/discharge current 2
    150A/240A
  • Max. charge/discharge current 2
    240A/240A
  • Communication interface
    CAN 2.0/RS485
  • Scalability
    Max. 240 in parallel, Max. 1.2 MWh
  • Operating temperature

    Discharging:-4℉ to 122℉ (-20℃ to 50℃), Charging:32℉ to 122℉ (0℃ to 50℃)

  • Dimensions (W*H*D, mm)

    440*135*410/PACK

  • Weight

    135kg

  • Enclosure protection rating

    IP20

  • Warranty 3

    10 years

  • Certifications

    IEC62619/CE/UN38.3

  • 1. Test conditions: 100% DOD, 0.2C charge & discharge at 25℃.
  • 2. The current is affected by temperature and SOC.
  • 3. For warranty instructions, please refer to the warranty terms.
Brochure/User Manual
Certification
  • Nominal energy
    20kWh
  • Usable energy (100% DOD) 1
    20kWh
  • Rated voltage
    51.2V
  • Charge/discharge cut off voltage
    44.8V~55.2V
  • Rated charge/discharge current 2
    200A/320A
  • Max. charge/discharge current 2
    320A/320A
  • Communication interface
    CAN 2.0/RS485
  • Scalability
    Max. 240 in parallel, Max. 1.2 MWh
  • Operating temperature

    Discharging:-4℉ to 122℉ (-20℃ to 50℃), Charging:32℉ to 122℉ (0℃ to 50℃)

  • Dimensions (W*H*D, mm)

    440*135*410/PACK

  • Weight

    180kg

  • Enclosure protection rating

    IP20

  • Warranty 3

    10 years

  • Certifications

    IEC62619/CE/UN38.3

  • 1. Test conditions: 100% DOD, 0.2C charge & discharge at 25℃.
  • 2. The current is affected by temperature and SOC.
  • 3. For warranty instructions, please refer to the warranty terms.
Brochure/User Manual
Certification
